Filter Element, HF-15

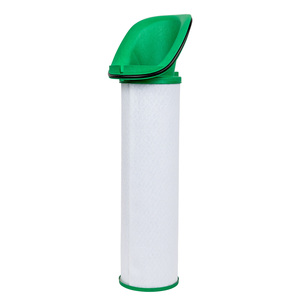

Images are representative and for illustrative purposes only, actual product may differ from image shown.
Filter Element, HF-15
Item Number: 5005542
Ships from Florida, US
In Stock
Please Login to see pricing and availability. If you would like more information, please contact our customer service team directly at customersupport.oca@its-ats.com or by phone (1) 724-745-1555. To make a purchase or request a quote, Find Your Local Distributor.
Model Number: HF-15
Configure Options
Customize Your Equipment
MODEL SIZE
Filter Element Grade
Your Configuration
Item Number:
5005542
Model Number:
HF-15
Overview
HF: Oil Removal. 0.6 PSIG Dry Pressure Drop and a 1.8 PSIG Wetted Pressure Drop. 0.01 µm Particle Retention Size, 99.999+% Particle Removal Efficiency, 99.9% Oil removal Efficiency, < 0.01 mg/m³ Maximum Remaining Oil Content. Class 1 Solids ISO Quality and Class 1 Oil ISO Quality. HF: Oil Removal. 0.6 PSIG Dry Pressure Drop and a 1.8 PSIG Wetted Pressure Drop. 0.01 µm Particle Retention Size, 99.999+% Particle Removal Efficiency, 99.9% Oil removal Efficiency, < 0.01 mg/m³ Maximum Remaining Oil Content. Class 1 Solids ISO Quality and Class 1 Oil ISO Quality.
SPECIFICATIONS
MODEL SIZE 15
Filter Element Grade HF: Oil Removal
MODEL HF-15
FLOW RATING 1030 SCFM
DESIGN TEMP 150°F
  • MODEL SIZE
    15
  • Filter Element Grade
    HF: Oil Removal
  • MODEL
    HF-15
  • FLOW RATING
    1030 SCFM
  • DESIGN TEMP
    150°F
Overview
HF: Oil Removal. 0.6 PSIG Dry Pressure Drop and a 1.8 PSIG Wetted Pressure Drop. 0.01 µm Particle Retention Size, 99.999+% Particle Removal Efficiency, 99.9% Oil removal Efficiency, < 0.01 mg/m³ Maximum Remaining Oil Content. Class 1 Solids ISO Quality and Class 1 Oil ISO Quality. HF: Oil Removal. 0.6 PSIG Dry Pressure Drop and a 1.8 PSIG Wetted Pressure Drop. 0.01 µm Particle Retention Size, 99.999+% Particle Removal Efficiency, 99.9% Oil removal Efficiency, < 0.01 mg/m³ Maximum Remaining Oil Content. Class 1 Solids ISO Quality and Class 1 Oil ISO Quality.
SPECIFICATIONS
MODEL SIZE 15
Filter Element Grade HF: Oil Removal
MODEL HF-15
FLOW RATING 1030 SCFM
DESIGN TEMP 150°F
  • MODEL SIZE
    15
  • Filter Element Grade
    HF: Oil Removal
  • MODEL
    HF-15
  • FLOW RATING
    1030 SCFM
  • DESIGN TEMP
    150°F
